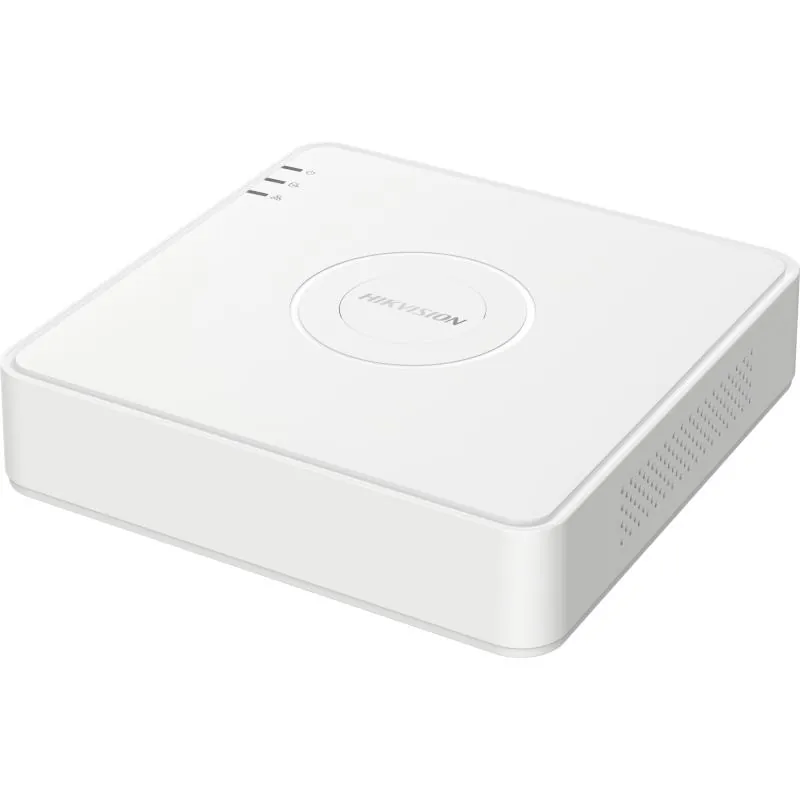

Hikvision DS-7108HGHI-M1 | 8CH DVR
SKU SCH83 · Hikvision · DS-7108HGHI-M1
Product images: Hikvision. Colour and finish of the unit in stock may differ.
8-channel HGHI DVR · Everyday CCTV recording
Rs. 14,900
3 units available in stock - 17/Oct/2026
🛡 1 Year Warranty
Add to cart Buy Now More in this department WhatsApp
- 🏬 Pick up in store: No. 24 Kurunegala Road, Chilaw
- 🚚 Island-wide delivery
- 💬 Questions? Call 032 222 4724 or WhatsApp us
About this product
The Hikvision DS-7108HGHI-M1 is a 8-ch 720p Mini 1U H.265 DVR. It records your CCTV cameras to a hard drive and shows them live on a monitor or TV, with remote viewing on your phone through the Hik-Connect app. A good fit for homes, shops and small offices.
Specifications
| Overview | |
|---|---|
| Brand | Hikvision |
| Model | DS-7108HGHI-M1 |
| SKU | SCH83 |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;Tells people and vehicles apart, cutting false alerts from leaves or animals. |
| Video and Audio | |
| IP Video Input | 2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP camerasExtra network (IP) cameras the recorder can also take. |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connectionHow many analogue (coaxial) cameras you can connect. |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | Support |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzConnect a monitor or TV to watch cameras live. |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzConnect a monitor or TV to watch cameras live. |
| Video Output Mode | HDMI/VGA simultaneous outputHDMI and VGA can show the same picture at the same time. |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cableRecords sound together with the video. |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | Reuse the first audio inputTalk through a connected speaker and listen through a connected microphone. |
| Synchronous playback | 8-chHow many cameras you can play back side by side. |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264H.265 type compression saves hard-disk space so you can keep recordings longer. |
| Network | |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPSSupports remote viewing on your phone through the Hik-Connect app. |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interfaceNumber of hard drives the recorder can hold. |
| Capacity | Up to 4 TB capacity for each diskLargest hard drive supported, which sets how many days of footage you can keep. |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC, 1.5 AWhat power the device needs; useful when planning the power supply. |
| Consumption | ≤ 17 W (without HDD)What power the device needs; useful when planning the power supply. |
| Working Temperature | -10 °C to 55 °C (14 °F to +31 °F)Temperature range it is rated to work in. |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) |
| ≤ 1 kg (without HDD, 2.2 lb.) | |
| Box and warranty | |
| Warranty | 1 Year Warranty |
Specifications from the manufacturer for this model.
