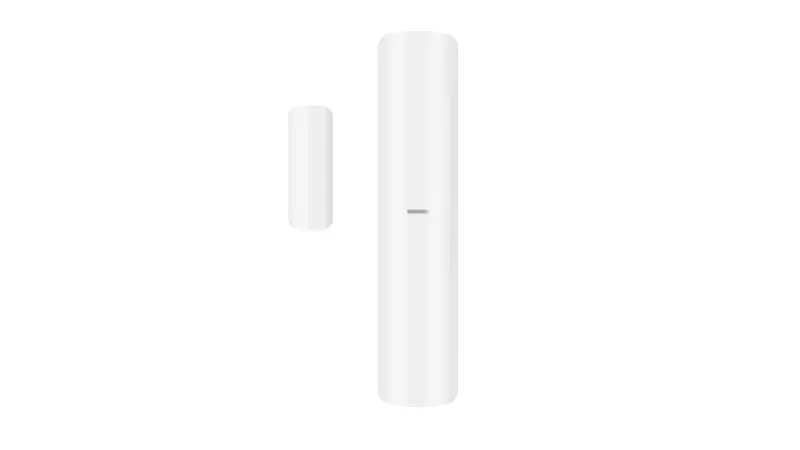

Hikvision DS-PDMC-EG2-WE | AX PRO 868 Door Sensor
SKU SCH48 · Hikvision · DS-PDMC-EG2-WE
Product images: Hikvision. Colour and finish of the unit in stock may differ.
Wireless door/window sensor for AX PRO 868 alarm kits
Rs. 8,900
6 units available in stock - 17/Oct/2026
🛡 1 Year Warranty
Add to cart Buy Now More in this department WhatsApp
- 🏬 Pick up in store: No. 24 Kurunegala Road, Chilaw
- 🚚 Island-wide delivery
- 💬 Questions? Call 032 222 4724 or WhatsApp us
About this product
The Hikvision DS-PDMC-EG2-WE is a magnetic Contact. It is part of the Hikvision AX PRO wireless alarm system and needs an AX PRO control panel.
Specifications
| Overview | |
|---|---|
| Brand | Hikvision |
| Model | DS-PDMC-EG2-WE |
| SKU | SCH48 |
| Detection Performance | |
| Detection Method | Opening Contact |
| Detection Gap | 43 mm Max |
| Feature | |
| Digital Processing | Support |
| Tamper Protection | Front;RearRaises an alert if the device is opened or pulled off its mounting. |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Alarm Input | Normally Closed;Normally Open;Impulse Count |
| Power Switch | Power up enrolling |
| LED Indicator | Blue (alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHzThe radio band used to talk to the alarm hub. |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1.6 km |
| Frequency Hopping | SupportSwitches radio channels to resist jamming. |
| Enrolling Method | Power up;Remote ID;QR Code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 5 years (standby time)Runs on batteries, so no wiring is needed. |
| Power Supply | Battery poweredWhat power the device needs; useful when planning the power supply. |
| Battery Type | CR123A x 1The battery type used for replacement. |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10°C to 55°C (14°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 24mm × 104mm × 24.4mm 13 mm × 34.4 mm × 11.4 mm |
| 59 g | |
| Application Scenario | Indoor |
| Box and warranty | |
| Warranty | 1 Year Warranty |
Specifications from the manufacturer for this model.
